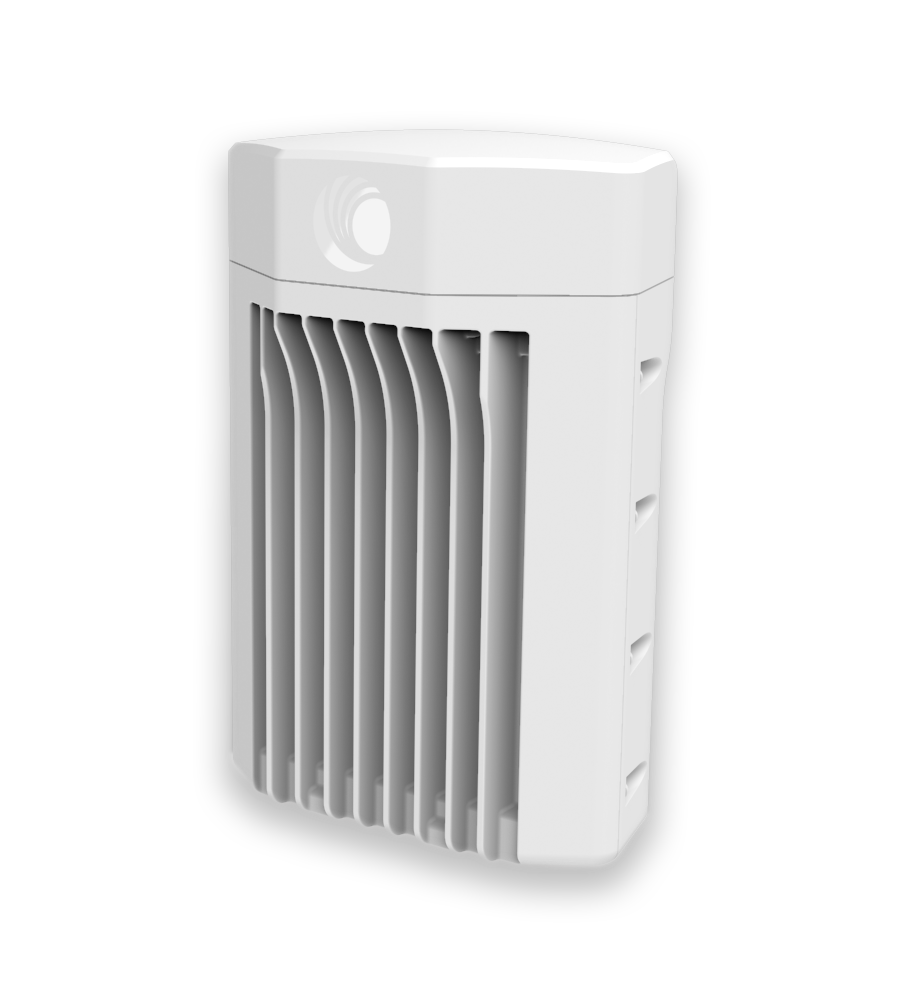

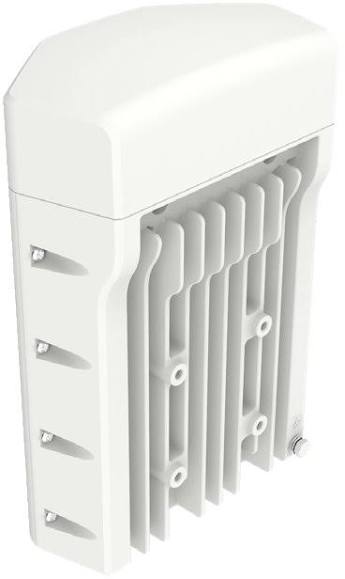

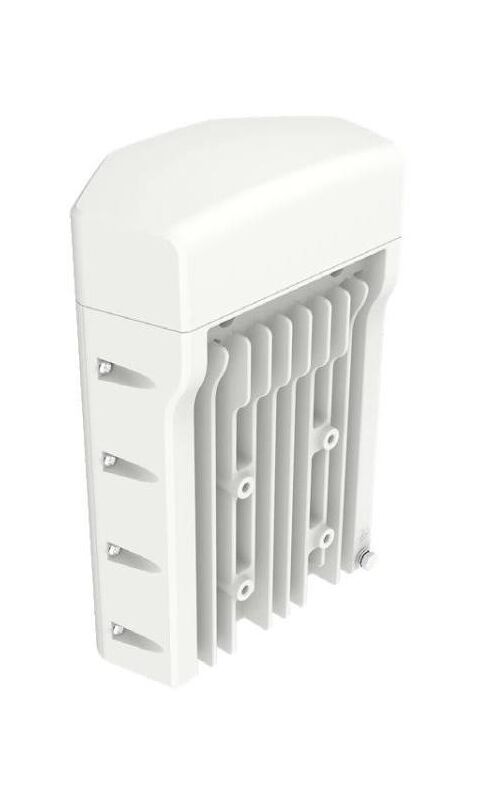

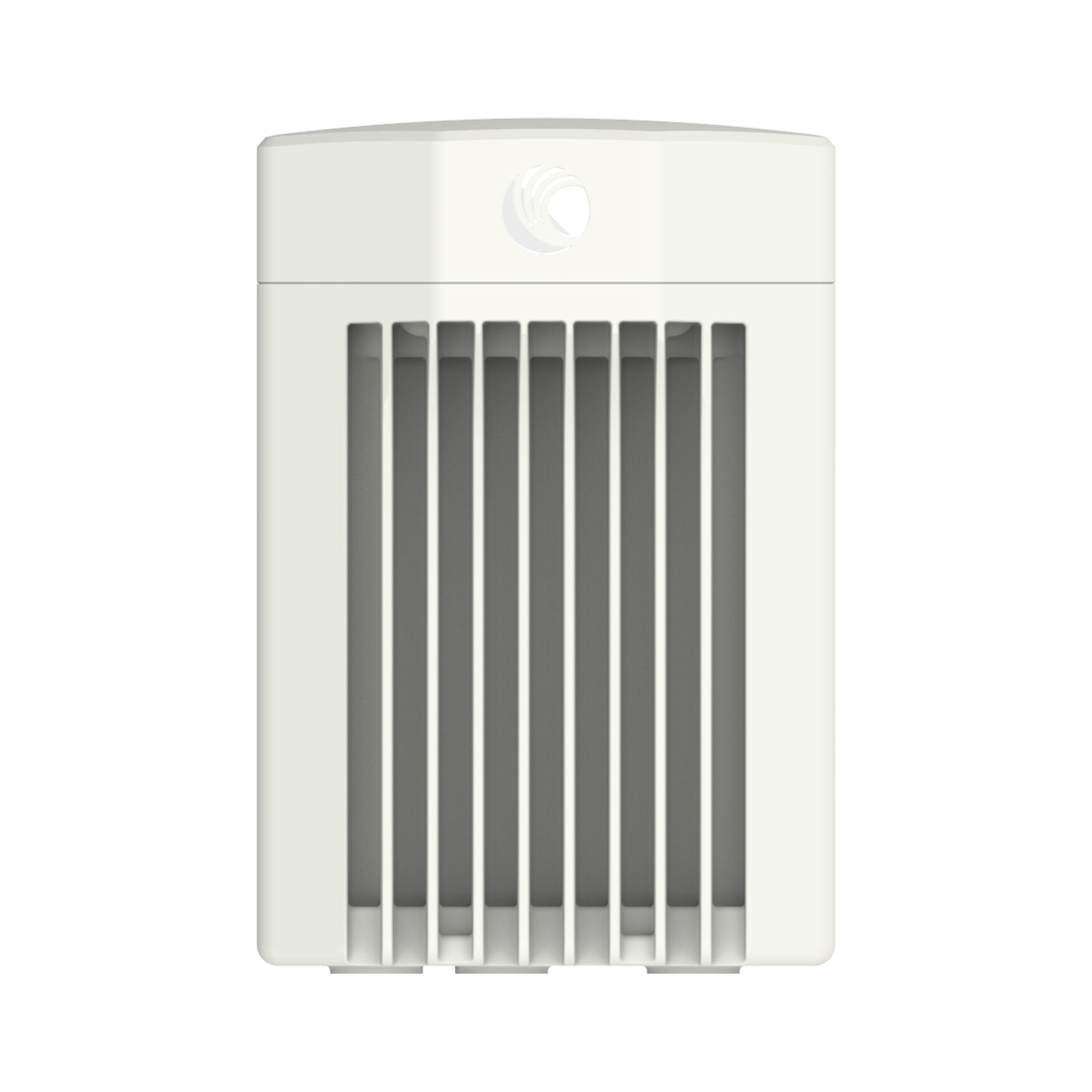

Cambium Networks cnWave V5000>span class=""> is a high-performance 60 GHz Distribution Node designed to deliver fibre-like wireless gigabit connectivity for edge access and high-capacity backhaul applications. Built on the 802.11ay standard and certified for Facebook Terragraph, this node is engineered for high-density deployment scenarios in urban and suburban environments.
>span class="">. With channel bonding, it can deliver an impressive aggregate throughput of up to 15.2 Gbps while maintaining ultra-low latency of under 1 ms, suitable for real-time applications.
| Product Type | 60 GHz Distribution Node (DN) for fixed wireless networks |
| Frequency Range | 57 to 66 GHz in a single SKU |
| Technology | 802.11ay (Certified for Facebook Terragraph) |
| Max Throughput | Up to 15.2 Gbps (7.6 Gbps UL + 7.6 Gbps DL) with channel bonding |
| Latency | < 1 ms |
| Coverage | Dual sector, up to 280 degrees with beamforming |
| Antenna | Integrated 22.5 dBi with 12° beam width |
| Mode of Operation | PTP, PMP, and Mesh configurations |
| Ethernet Interfaces | 1x 10G BaseT (PoE In), 1x 1G BaseT (PoE Out), 1x SFP+ |
| Security | 128-bit AES Encryption |
| Management | cnMaestro (Cloud or On-Premise) |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Dimensions (W x H x D) | 185 x 280 x 102 mm |
| Weight | 4 kg |
