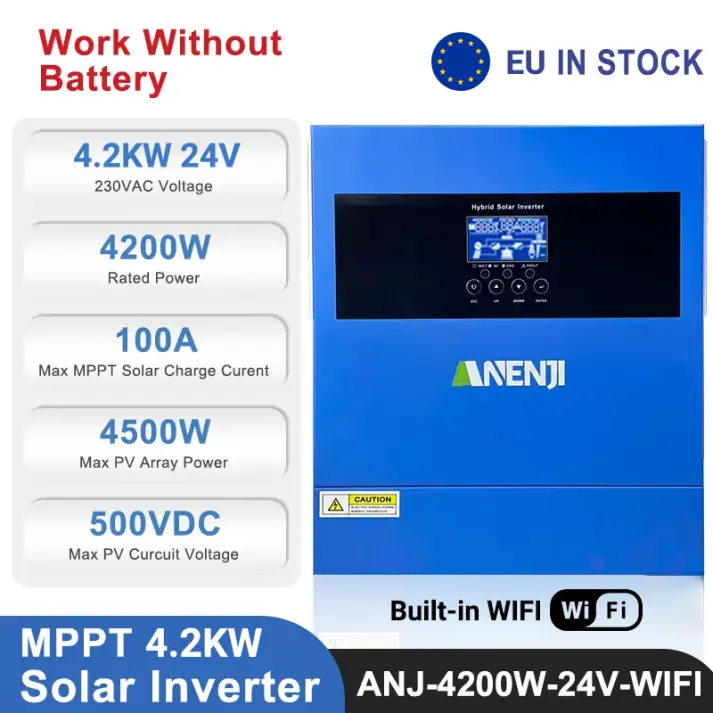

The Anenji ANJ-4.2KW-24V-WIFI is a 4200W (4.2kW) hybrid solar inverter designed for both on-grid and off-grid configurations. Operating on a 24V battery system, it utilizes a pure sine wave output to safely power sensitive household electronics.
Key Technical Specifications
- Rated Output Power: 4200W (4.2kW)
- Output Voltage: 220V / 230V AC (Pure Sine Wave, Power Factor 1.0)
- System Battery Voltage: 24V DC
- Built-in Controller: 100A MPPT (Maximum Power Point Tracking)
- PV Input Voltage Range: 60Vdc – 500Vdc
Core Features & Functionality
- Battery Flexibility: It is fully compatible with LiFePO4 and standard Lithium batteries via an RS485 communication interface. It also features a specialized lithium battery activation function triggered via main utility grid power or solar PV.
- Battery-Free Operation: The system can function normally and provide continuous power supply directly from PV or utility grid lines even if a battery is not connected.
- Remote Monitoring: Built-in WiFi functionality allows real-time status tracking and remote management via the Smart ESS mobile application (available on Google Play and Apple App Stores).
- Output Prioritization: Highly customizable operation priorities—including UTL (Utility), SOL (Solar), SBU (Solar-Battery-Utility), and SUB (Solar-Utility-Battery)—to suit personal energy management and minimize grid electricity costs.
- Dual Output Capacity: Many iterations of this specific 4.2kW model support dual AC outputs to effectively segregate and manage primary vs. secondary (heavy) loads.
