MSI B760 GAMING PLUS WIFI DDR5 6800MHZ 1XHDMI 1XDP 2XM.2 USB 3.2 ATX 1

ST02459
Renk:
Siyah
Tüm özellikler
The MSI B760 GAMING PLUS WIFI is a high-utility, mid-range ATX motherboard designed for Intel LGA 1700 processors. It delivers excellent modern...
Tam Açıklama
12,540.00
+
NCBazaar Soru Sor
12,540.00

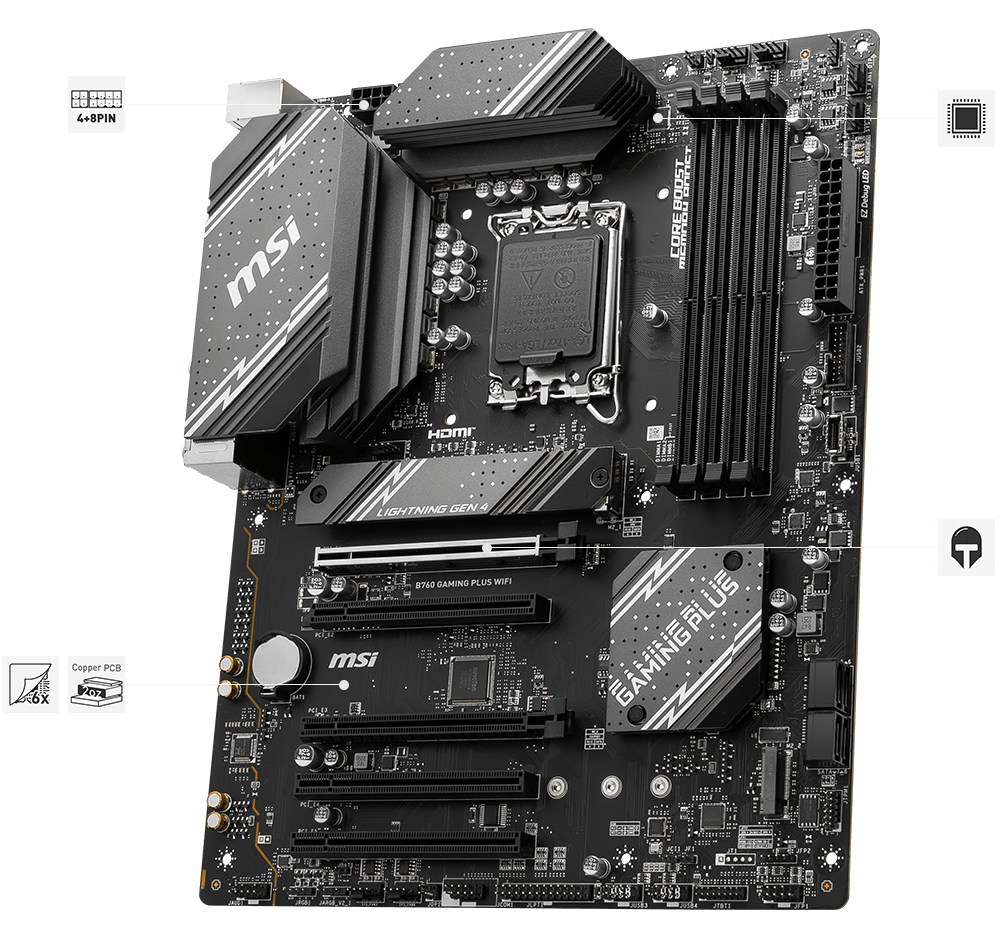

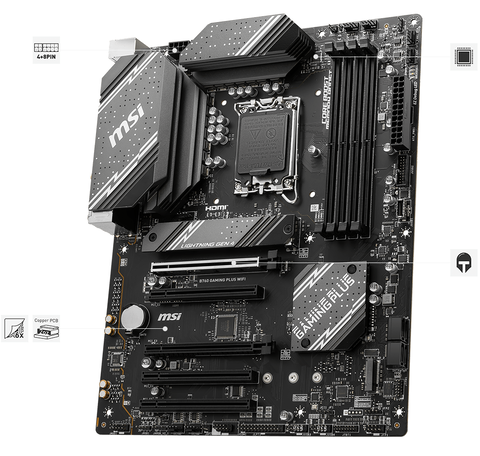

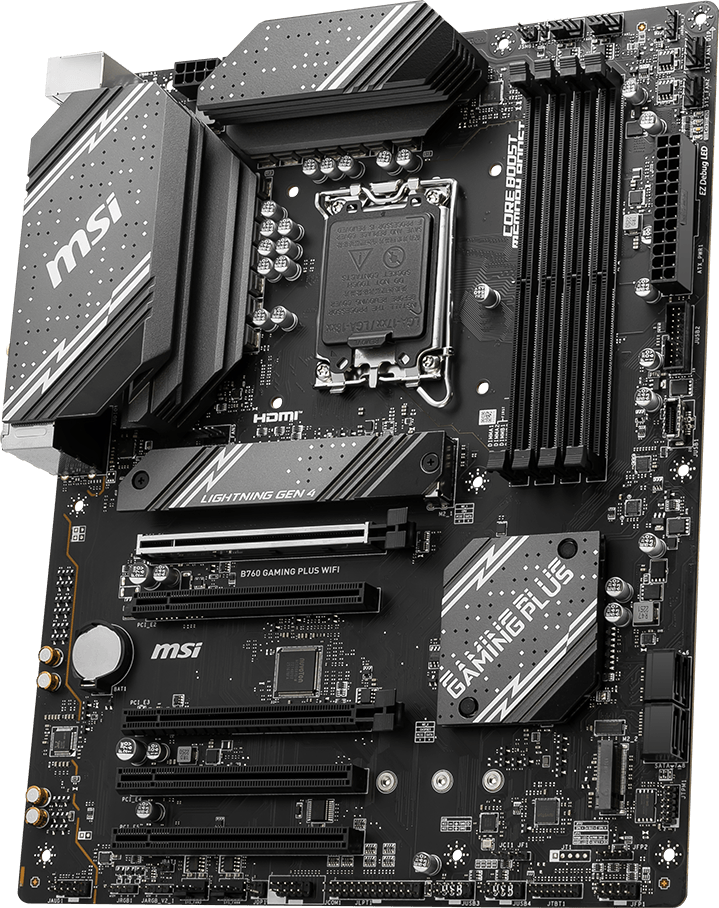

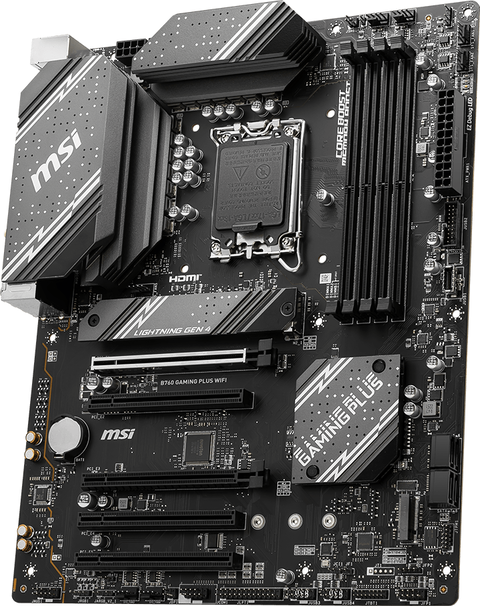

The MSI B760 GAMING PLUS WIFI is a high-utility, mid-range ATX motherboard designed for Intel LGA 1700 processors. It delivers excellent modern connectivity and robust power delivery tailored for gamers and PC builders.

Core Technical Specifications

  • CPU Support: Intel Core 14th, 13th, and 12th Generation processors, plus Pentium Gold and Celeron (LGA 1700 socket).
  • Memory Support: 4x DDR5 DIMM slots supporting dual-channel memory configuration up to DDR5-6800+ MHz (OC) with a maximum capacity of 192GB.
  • Storage Sockets: 2x M.2 Gen4 x4 64Gbps slots (the primary slot features an M.2 Shield Frozr heatsink to prevent thermal throttling) alongside 4x SATA 6Gb/s ports.
  • Display Interface: Integrated 1x HDMI 2.1 port and 1x DisplayPort 1.4, both outputting up to 4K resolution at 60Hz (requires a processor with integrated graphics).
  • Expansion Slots: 2x PCIe 4.0 x16 slots (primary slot reinforced with Steel Armor) and 3x PCIe 3.0 x1 slots.
  • USB Ports: Built-in USB 3.2 Gen 2 (10Gbps) Type-C and Type-A ports on the rear panel, alongside USB 3.2 Gen 1 and USB 2.0 headers.
  • Networking: High-speed wireless via Intel Wi-Fi 6E and Bluetooth 5.3, complemented by a wired Realtek 2.5Gbps LAN port.
  • Power Design: 12+1+1 Duet Rail Power System with digital PWM and 8+4 pin CPU power connectors to support heavy multi-core CPU workloads stably.
